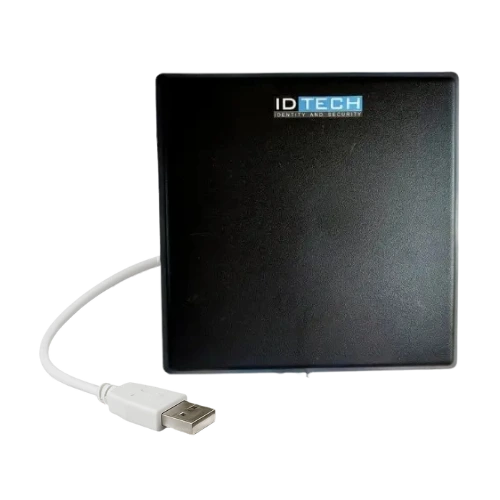

The HF RFID Panel Pad Reader is a high-performance HF integrated reader designed for ISO 15693 and ISO 14443 A/B standards. Built with an advanced anti-collision algorithm, it delivers excellent read/write efficiency with support for multiple tag counts simultaneously. With USB plug-and-play connectivity and a broad reading surface, it is ideal for desktop environments like libraries, jewelry tracking, and retail point-of-service operations.
Why Choose Panel Pad Reader?
Need a reliable HF Panel Pad Reader Reader?
Upgrade to smart, secure, and seamless RFID card reading.
The HF RFID Panel Pad Reader is a compact yet powerful HF reader tailored for environments where high-speed, multi-tag identification is critical. With an integrated antenna and advanced anti-collision algorithm, it ensures smooth and efficient read/write operations, even with dense tag populations. Its plug-and-play design allows easy integration into desktops via USB, while optional RS232/TTL support offers extended flexibility.
Encased in durable ABS housing with IP54 protection, the Staff Station is rugged enough for industrial use yet optimized for commercial applications such as library management, jewelry authentication, and drug tracking. LED and buzzer indicators provide clear visual and audio feedback during operation, enhancing user interaction.
| Physical Parameters | |
|---|---|
| Dimension | 250 × 250 × 20 mm |
| Weight | 1.2 Kg |
| Power Supply | 5V USB |
| Interface | USB, TTL/RS232 |
| Indicator | LED/Buzzer |
| Housing | ABS Plastic |
| Development Tool | |
| Software Support | SDK Provided |
| Environmental Specification | |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -20°C to +70°C |
| Protection Class | IP54 |
| Rfid Staff Station Dimension | |
| Dimension | 290mm x 290mm |
| Hf Rfid Feature | |
| Working Frequency | 13.56 MHz |
| Protocol | ISO 15693, ISO 14443 A/B |
| Read Range | 30 cm (depend on tag performance) |
| Write Range | 20 cm (depend on tag performance) |
| Reading Rate | 40 Tag/Sec |
| Antenna | Built-in integrated antenna |
| Operating Mode | Answer, Active, Trigger |
| RF Output Power | 1 W |
| Order Information | |
| Part Number | IDT.SFST.HF.01 |
