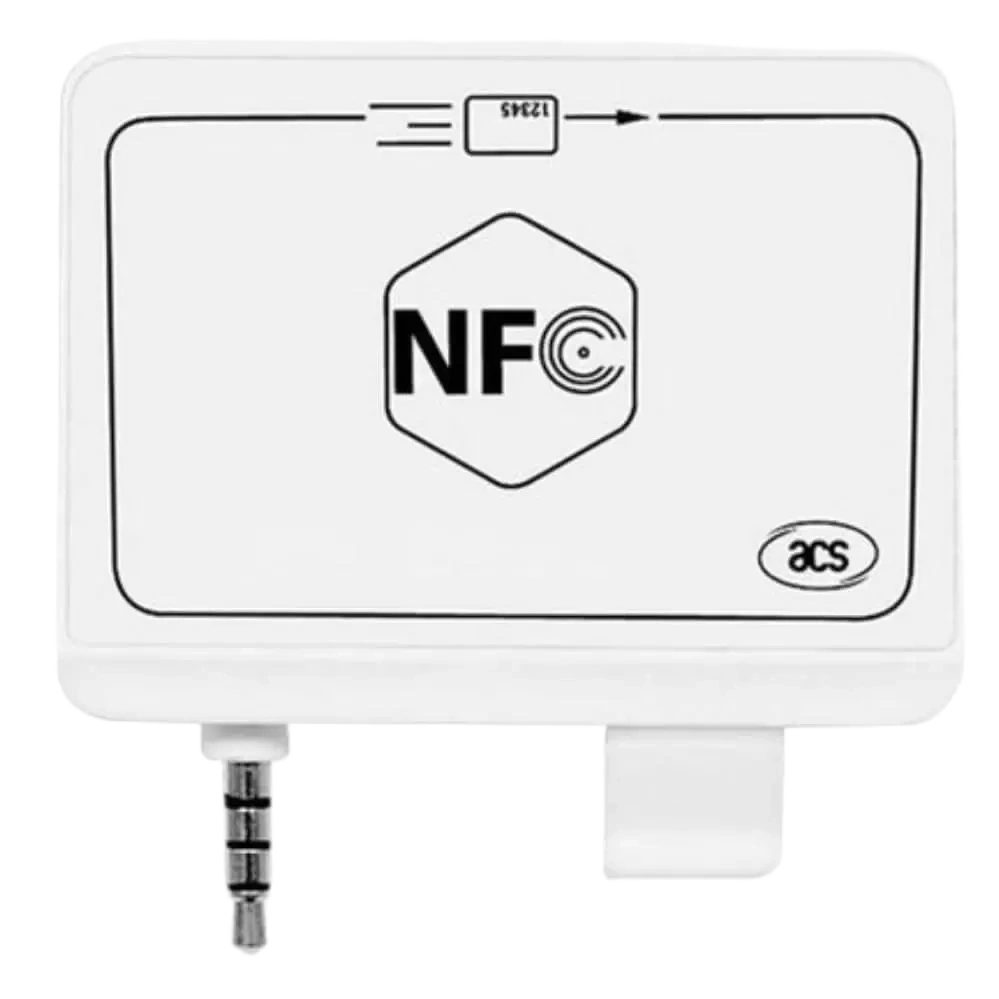

The ACR35 NFC MobileMate is a portable and versatile card reader designed for mobile devices. Combining magnetic stripe and contactless smart card technologies into one compact tool, it offers secure and flexible transactions anywhere. With a rechargeable lithium-ion battery, 3.5 mm audio jack interface, and support for AES-128 encryption with DUKPT, it ensures mobility without compromising data security.
Why Choose ACR35 NFC Card Reader?
Need a reliable Smart Card Reader?
Upgrade to secure, fast, and future-ready smart card authentication.
The ACR35 NFC MobileMate is designed to extend the power of mobile devices by combining contactless smart card and magnetic stripe card reading in one lightweight solution. With its 3.5 mm audio jack interface, it connects easily to smartphones and tablets, even those without built-in NFC functionality. It supports ISO 14443 Part 4 Type A and B cards, MIFARE®, FeliCa®, ISO 18092-compliant NFC tags, and magnetic stripe cards (Hi-Co/Lo-Co, JIS1, JIS2). Its built-in anti-collision feature ensures reliable contactless operations, while AES-128 encryption with DUKPT secures sensitive transactions. Powered by a rechargeable Lithium-ion battery, the ACR35 is compact, portable, and highly versatile, ideal for industries such as banking, retail, transport, and enterprise security. With demo apps available for download on Google Play and App Store, integration and testing are seamless.
Here’s what sets us apart as a plastic card manufacturer:
| Dimensions | 60.0 mm × 45.0 mm × 13.3 mm | |||
| Weight | 29 g (with battery) | |||
| Color | White | |||
| Audio Jack Communication Interface | • Protocol: Bi-directional Audio Jack Interface • Connector: 3.5 mm 4-pole Audio Jack • Speed: Max. 2.6 Kbps • Power Source: Rechargeable Lithium-ion Battery (charging through USB) |
|||
| USB Host Interface | • Connector Type: Micro-USB • Power Source: From USB port • Supply Voltage: 5 V • Cable Length: 1 m, Detachable |
|||
| Contactless Smart Card Interface | • Standard: ISO/IEC 18092 NFC, ISO 14443 Type A & B, MIFARE, FeliCa • Protocol: ISO 14443 T=CL for ISO 14443-4–compliant cards; T=CL Emulation for MIFARE Classic, ISO 18092, FeliCa, and NFC tags • Operating Frequency: 13.56 MHz • Operating Distance: Up to 30 mm (depending on tag type) • Smart Card Read/Write Speed: 106 Kbps, 212 Kbps, 424 Kbps |
|||
| Magnetic Card Interface | • Standard: ISO 7810/7811 Hi-Co and Low-Co Magnetic Cards, JIS1 and JIS2 • Card Swipe Speed: Max. 10 in/s • Card Swipe Cycles: Min. 500,000 |
|||
| Operating Conditions | • Temperature: 0 °C – 50 °C • Humidity: Max. 90% (non-condensing) • MTBF: 300,000 hrs |
|||
| Certifications / Compliance | EN 60950/IEC 60950, ISO 14443, ISO 18092, ISO 7811, CE, FCC, RoHS 2, REACH, VCCI (Japan) | |||
| Device Driver / OS Support | Androidâ„¢ 2.0 and later, iOS 5.0 and later | |||
