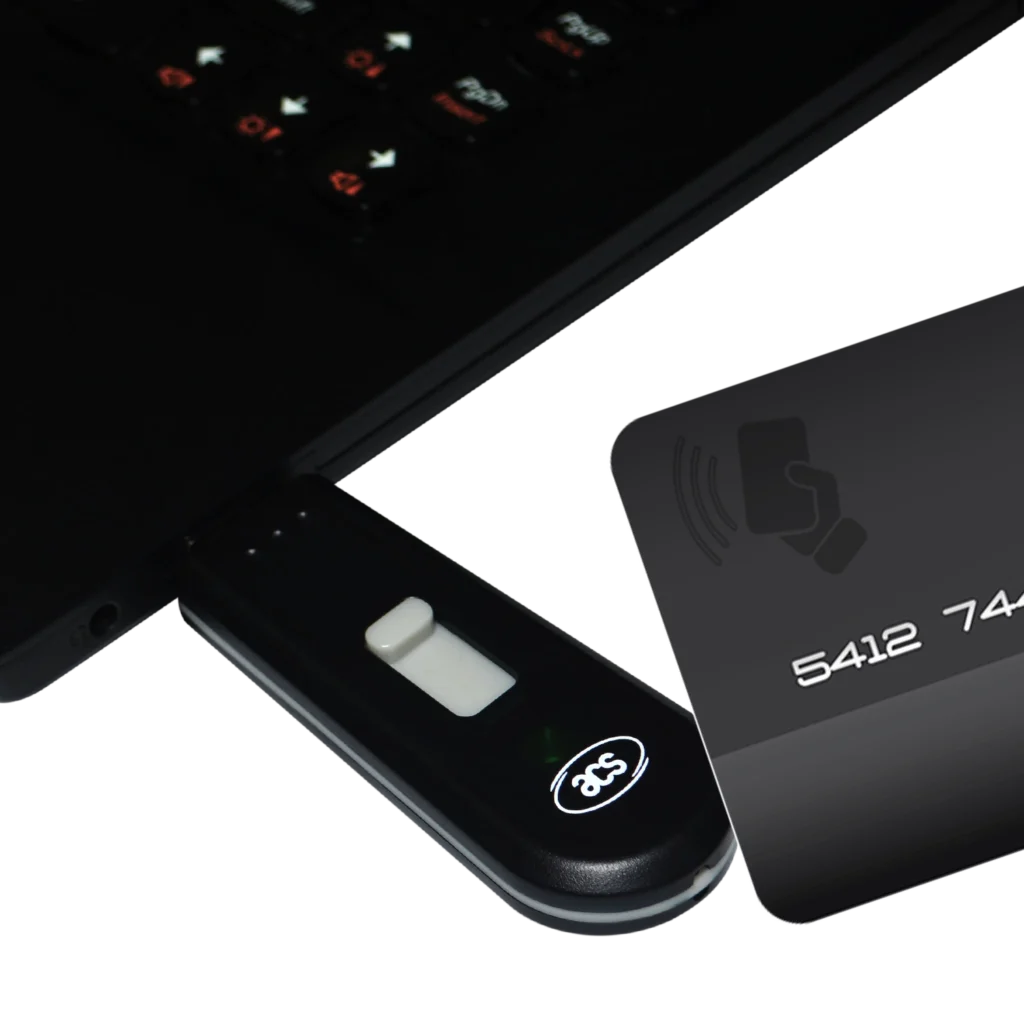

The ACR1251T USB Token NFC Reader II is a portable and secure contactless smart card reader designed for convenience and mobility. With its token-style compact design, it supports a wide range of NFC applications such as secure authentication, e-payment, ticketing, and identity verification. Easy to use and highly compatible across systems, it’s the perfect solution for secure everyday NFC transactions.
Why Choose ACR1251T?
Need reliable contact smart card readers?
Get high-performance, secure readers from one of India’s most trusted manufacturers.
The ACR1251T USB Token NFC Reader II is a token-type NFC smart card reader that provides both mobility and security. Supporting ISO/IEC 18092 standards, it reads ISO 14443 Type A & B cards, MIFARE®, FeliCa™, and all four NFC Forum Tag Types. With its built-in Secure Access Module (SAM) slot, it enhances security for applications such as contactless payment and secure authentication. The reader supports data transmission speeds of up to 424 kbps and a proximity operating distance of up to 50 mm.
Compact and lightweight, the token design makes it easy to carry, while its plug-and-play CCID compliance ensures seamless integration with existing systems. The ACR1251T is compliant with PC/SC and CCID standards, and supports Windows®, Linux®, macOS®, and Android™ platforms, making it highly versatile.
| Physical Characteristics | |
| Dimensions | 75.0 mm (L) × 30.0 mm (W) × 12.7 mm (H) |
| Weight | 15.8 g |
| Color | Black Grey |
| USB Host Interface | |
| Protocol | USB CCID |
| Connector Type | Standard Type A |
| Power Source | From USB port |
| Speed | USB Full Speed (12 Mbps) |
| Supply Voltage | 5 V |
| Supply Current | Max. 200 mA |
| Contactless Smart Card Interface | |
| Standard | ISO/IEC 18092 NFC, ISO 14443 Type A & B, MIFARE, FeliCa |
| Protocol | ISO 14443 T=CL for ISO 14443-4–compliant cards T=CL Emulation for MIFARE Classic, ISO 18092, FeliCa and NFC tags |
| Operating Frequency | 13.56 MHz |
| Operating Distance | Up to 30 mm (depending on tag type) |
| Smart Card Read/Write Speed | 106 Kbps, 212 Kbps, 424 Kbps |
| Antenna Size | 20 mm × 20 mm |
| Built-in Peripherals | |
| LED | 1 Bi-color: Green and Red |
| Other Feature | |
| Firmware Upgrade | Supported |
| Application Programming Interface | |
| PC-linked Mode | PC/SC, CT-API (through wrapper on top of PC/SC) |
| Operating Conditions | |
| Temperature | 0 °C – 60 °C |
| Humidity | Max. 90% (non-condensing) |
| MTBF | 500,000 hrs |
| Certifications / Compliance | |
| Standards | EN 60960/IEC 60950, ISO 14443, ISO 18092, USB Full Speed, PC/SC, CCID, CE, FCC, RoHS, REACH, VCCI (Japan), MIC (Japan), Microsoft WHQL |
| Device Driver Operating System Support | |
| Windows | CE 5.0, CE 6.0, Embedded Compact 7, XP, Vista, 7, 8, 8.1, 10, Server 2003/2008/2012/2016 |
| Others | Linux, Mac OS, Solaris, Android 3.1 and later |
