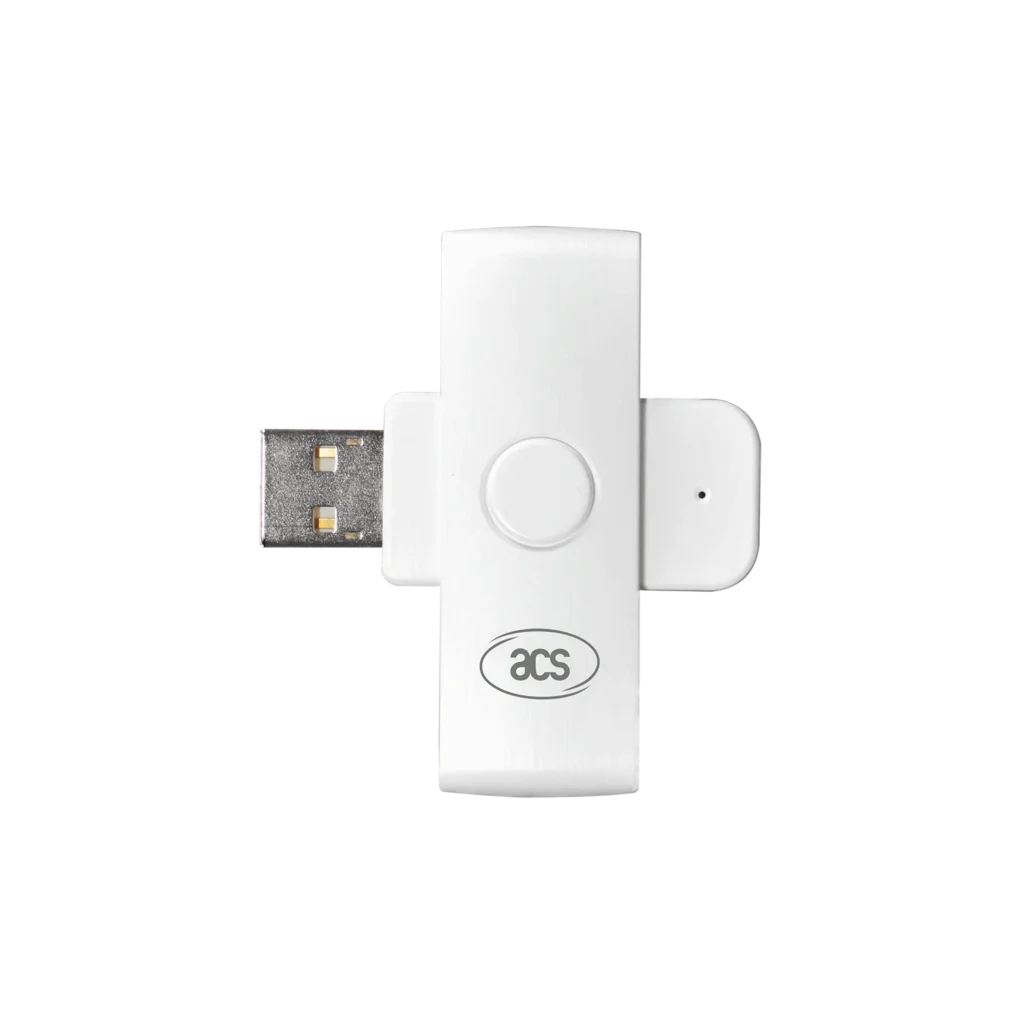

The ACR39U-N1 PocketMate II Contact Smart Card Reader is a sleek and portable smart card reader that fits easily in your pocket. Its swivel design keeps it protected, while its durable build ensures long-lasting use. Perfect for everyday convenience, it combines style with reliability, making it a smart choice for secure access, banking, and identity applications on the go.
Why Choose ACR39U-N1?
Need reliable contact smart card readers?
Get high-performance, secure readers from one of India’s most trusted manufacturers.
ACR39U-N1 PocketMate II is a small and portable smart card reader made for daily ease of use. Its swivel-USB-Go design shields the connector when idle, and its sturdy construction guarantees up to 100,000 card insertion cycles. Even with its compact size, it provides dependable performance with standard contact smart cards. The ACR39U PocketMate II is compatible with ISO 7816 Class A, B, and C smart cards, T=0 and T=1 protocol microprocessor cards, and various memory cards such as CAC, SIPRNET, and MyKad. This adaptability makes it perfect for uses such as secure banking, access control, PIV, and digital signatures. Engineered for portability, it meets both PC/SC and CCID standards, facilitating easy integration with computer systems. Featuring a standard USB Type-A connector, it is compatible with various platforms such as Windows®, Linux®, Solaris™, and macOS®. It is compatible with Android™ devices (version 3.1 and later), providing versatility no matter where you are.
| Contact Smart Card Interface | Number of Slot(s): 1 Full-Sized Card Slot Supported Card Types: ISO 7816 Parts 1–4, Class A/B/C (5V, 3V, 1.8V); Microprocessor Card (T=0, T=1); Memory Card; MyKad; CAC; PIV; J-LIS; SIPRNET Smart Card Supply Current: Max. 100 mA Read/Write Speed: Up to 600 Kbps (depending on cards) Clock Frequency: 4.80 MHz (operates up to 16 MHz) Card Connector: 6-pin Contact Card Insertion Cycles: 400,000 PPS (Protocol & Parameters Selection): Supported Short Circuit Protection: Supported |
|||
| Host Interface | Protocol: USB CCID Connector Type: N1 = USB Type-A / NF = USB Type-C USB Interface: USB 2.0 Full Speed (12 Mbps), compatible with USB 3.0 Supply Voltage: 5 V |
|||
| Application Programming Interface | PC/SC – PC-Linked Mode | |||
| Physical Characteristics | Dimensions: Type-A / Type-C – 58.0 mm (L) × 20.0 mm (W) × 13.7 mm (H) Weight: Type-A = 12 g ± 1.2 g / Type-C = 10 g ± 1.0 g Available Colour(s): White |
|||
| Peripherals | LED Indicator: Green | |||
| Operating Conditions | Temperature: 0 – 60 °C Humidity: Max. 90% (non-condensing) MTBF: 500,000 Hours Power Source: USB Port |
|||
| Certifications / Compliances | Standards: USB CCID, PC/SC, EMV™ Level 1 (Contact), PBOC Level 1 (Contact), J-LIS, Microsoft® WHQL, CT-API, TAA Regulatory / Environmental: CE, IEC/EN 62368, UL 62368, FCC, VCCI, KC, RoHS, REACH, WEEE, UKCA |
|||
| OS Support | Windows®, Linux®, macOS, iOS, iPadOS, Android™, Solaris™ | |||
| Model / Part Number | Default [USB Type-A]: ACR39U-N1 Default [USB Type-C]: ACR39U-NF |
|||
