The IDT-87 IN is a high-performance integrated RAIN RFID reader featuring a 9 dBi circular antenna and the advanced Impinj E710 module for long-range, stable read performance up to 18 meters. Its rugged IP68 design, built-in LED and buzzer, and Made-in-India engineering ensure reliable operation in demanding environments. With fast processing and consistent accuracy, it is ideal for vehicle identification, parking automation, logistics, and industrial automation.Supports Power over Ethernet (PoE) for simplified installation with a single cable for power and data.
Why Choose the IDT-87 IN?
Ready for efficient, automated identification?
Choose the IDT-87 IN, our most advanced, rugged, Made-in-India reader trusted by government bodies for national-scale RFID deployments.
The IDT-87 IN brings together a powerful RFID engine and a high-gain antenna in a single compact unit, making it easy to deploy in almost any environment. Its Impinj E710 chipset delivers fast, stable tag reading even in challenging outdoor setups, while the integrated 9 dBi antenna ensures strong, focused coverage without needing external components.
Built for long-term field use, the reader features a fully sealed IP68 enclosure that withstands heat, rain, dust, and continuous operation. Simple mounting options, clear visual LED/audible read indicators, and flexible connectivity allow integrators to set up the device quickly and keep systems running with minimal maintenance.
| Physical Parameters | |
|---|---|
| Dimensions | 298mm × 298mm × 105mm |
| Weight | 2800 gm |
| Interfaces | RS232, RS485, Weigand26/34 (TCP/IP & WiFi Optional) |
| Indicators | LED & Buzzer |
| Housing | Aluminium Housing with Engineering Plastic Cover |
| Mounting Style | 100mm × 100mm VESA M6 Hole |
| Architecture | |
| Processor | Arm CORTEX M4 CORE MCU |
| POE | Power Over Ethernet (Optional) |
| Power Supply | Wide Voltage Input (+9V to +24V) |
| UHF RFID | |
| Operating Frequency | Standard ISM 865-868 MHz (IND), 865-868 MHz (EU), 902-928 MHz (US) |
| Air Interface Protocol | ISO18000-68, EPC Class 1 Gen2 (ISO18000-6C) |
| Read Range | Up to 18 meters |
| Output Power | 0 dBm to 30 dBm |
| Antenna | Built In Circular 9 dBi Antenna |
| External Antenna | 1 External Antenna Port Optional |
| RFID Module | Impinj E710 |
| SDK | Provided DLL and Demonstration Software Source code to Facilitate Further Development |
| External Control | 2 Nos. Built In Relays (GPIOs) 4, Optically Isolated |
| Operation Mode | Answer, Active, Trigger |
| Frequency Hopping | FHSS or Fixed Frequency Transmission (Supports RSSI) |
| Environmental Specification | |
| Temperature | -40°C to +60°C (Operating), -40°C to +85°C (Storage) |
| Humidity | 95% |
| Protection Class | IP 68 |
| Order Information | |
| Part Number | IDT.UHF.87 IN |
| Accessories | Power Adapter, Mounting Kit, VESA Mount |
| Application Area | |

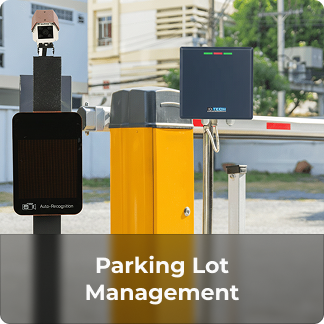

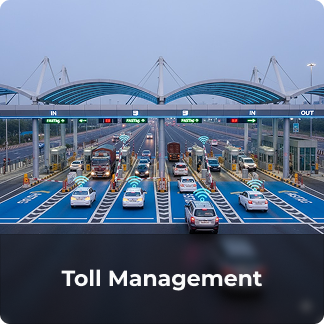

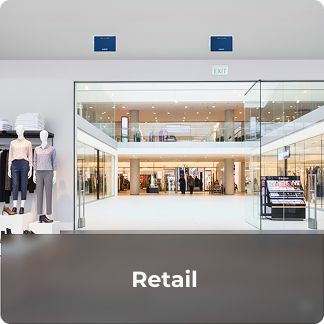

| Applications | Parking Lot Management, Electronic Tail Management, Warehouse Management, Employee/Student Tracking, Vehicle Access Management |
VESA Mounting Kit
Pole Mounting Bracket
Power Adapter
RF Cable
