The IDT-85 is a durable mid-range RAIN RFID integrated reader built for reliable outdoor and industrial use. Built on an advanced RF engine with optimized digital signal processing, it delivers fast and precise tag read/write performance, it supports tag read/write with high accuracy. Its inbuilt 9 dBi antenna delivers strong mid-range performance, ideal for automation and access applications. With a weatherproof IP65 body and flexible connectivity, the IDT-85 ensures easy integration and long-lasting, trouble-free operation.
Why Choose the IDT-85?
Ready to upgrade to reliable mid-range identification
Choose the IDT-85, a durable, high-accuracy fixed RFID reader built for real-world deployments across parking, logistics, and access control automation.
The IDT-85 Mid Range RAIN Integrated RFID Reader combines a powerful RFID engine with an optimized 9 dBi antenna, delivering consistent read performance without needing external antennas. Its fast reading capability (200+ tags per second) ensures high visibility for dynamic environments such as moving vehicles or busy warehouse operations.
Built for tough industrial conditions, its IP65-certified body protects against dust, moisture, and temperature changes. With Linux support, flexible power options, multiple interfaces, and software-tunable settings, the IDT-85 enables stable, scalable RFID deployments with minimal maintenance.
| Physical Parameters | |
|---|---|
| Dimensions | 298mm × 298mm × 105mm |
| Weight | 2800 g |
| Power Supply | 100-240V, DC+9V (Power Adapter) |
| Power Consumption | 1 W |
| Interfaces | Rs232, RS485, Wiegand 26/34 (TCP/IP & Wi-Fi Optional) |
| Indicators | LED & Buzzer |
| Software Support | SDK Provided |
| Housing | Aluminium Housing with Engineering Plastic Cover |
| UHF RFID | |
| Work Frequency | Standard ISM 865-867 MHz (IND), 865-868 MHz (EU), 902-928 MHz (US) |
| Air Interface Protocol | ISO18000-68, EPC Class 1 Gen2 (ISO18000-6C) |
| Read Range | 0 – 8m |
| Write Range | 0 – 2m |
| Antenna | Built-in 9dBi Linear/Circular Polarized Antenna (As per requirement) |
| Operating Mode | Answer, Active, Trigger |
| Reading Rate | Software Programmable |
| Power Output | 0-30 dBm (adjustable) |
| Frequency Hopping | FHSS |
| Communication Interface | |
| IDT 85 S | RS232/485, Weigand 26/34 |
| IDT 85 L | RS232/485, Weigand 26/34, Ethernet |
| IDT 85 LW | RS232/485, Weigand 26/34, Ethernet, WiFi |
| IDT 85 LB | RS232/485, Weigand 26/34, Ethernet, WiFi, Bluetooth |
| Environmental Specification | |
| Temperature | -25°C to +60°C (Operating), -25°C to +80°C (Storage) |
| Humidity | 5% RH – 95% RH non condensing |
| Protection Class | IP 65 |
| Order Information | |
| Part Number | IDTUHF.85.S | IDTUHF.85.L |
| Accessories | Power Adapter, Power Cable, Mounting Kit |
| Application Area | |

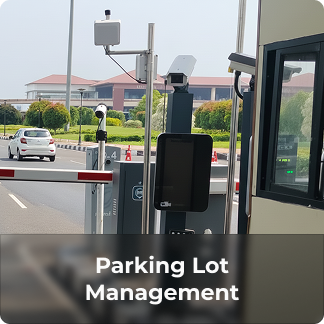

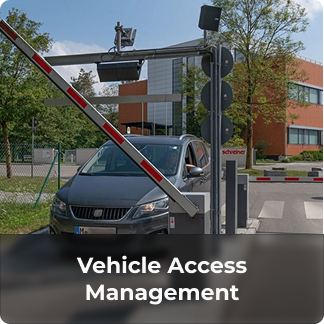

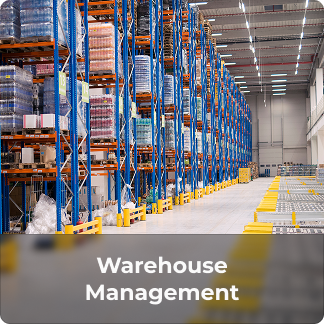

| Applications | Parking Lot Management, Electronic Toll Collection, Warehouse Management, Employee / Student Tracking, Vehicle Access Management |
