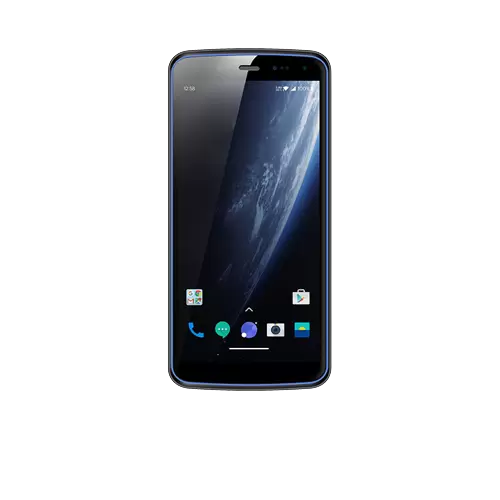

The IDT RHC90 Mobile Computer is a lightweight yet rugged Android handheld device designed for industries requiring reliable data capture, mobility, and performance. Running on Android 10/14 with a powerful Octa-Core 2.0GHz processor, it combines a large 5.7-inch HD display, high-speed barcode scanning, NFC, and dual cameras into a slim and portable design. At only 230g, it offers the best balance of portability and functionality, making it ideal for logistics, warehousing, retail, healthcare, and automotive industries.
Why Choose IDT RHC90?
Ready for efficient RFID data capture?
Get the IDT RHC90 from ID Tech – trusted by leading government bodies, ID Tech proudly powers national initiatives with Made-in-India, scalable technology.
The IDT RHC90 is built for enterprises needing a compact mobile computer with powerful features. Its slim form factor and lightweight build ensure comfortable all-day use, while the Octa-Core processor and large display deliver fast performance and clear visibility. With optional 2D barcode scanning, NFC, and front/rear cameras, the RHC90 provides versatile data collection for multiple industries.
| Physical Parameters | |
|---|---|
| Dimension | 158.5 x 76.0 x 13.1 mm / 6.24 x 2.99 x 0.52 in. |
| Weight | 230 g |
| Interface | USB Type-C, USB 2.0, OTG |
| Sensor | Light sensor, proximity sensor, gravity sensor |
| Display | 5.7-inch (18:9), IPS LTPS 1440 x 720 |
| Battery | Main battery: built-in 5000 mAh Standby: up to 490 hours (only main battery; WiFi: up to 470h; 4G: up to 440h) Continuous use: over 12 hours (depending on user environment) Charging time: 2.5 hours (charge device by standard adaptor and USB cable) |
| Touch Panel | Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported |
| Audio | 2 microphones, 1 for noise cancellation; 1 speaker; receiver |
| Notification | Sound, LED indicator, vibrator |
| Keypad | Power, 2 scan keys, volume +/- |
| Performance | |
| Processor | 2.0 GHz Octa-core |
| Expansion | Supports up to 256 GB Micro SD card |
| Memory | 3GB + 32GB / 3GB + 64GB / 4GB + 64GB |
| Environmental Specifications | |
| Operating Temperature | -20°C to +50°C |
| Storage Temperature | -40°C to +70°C |
| Humidity | (Storage) 5% RH – 95% RH non-condensing |
| Drop Test | Multiple 1.5 m to the concrete |
| Protection | IP67 |
| Communication | |
| WLAN | Support IEEE802.11 a/b/g/n/ac/eh/ik/v/k/r/w, 2.4G/5G dualband, IPV4, IPV6; Support 5G PA Fast roaming: PMKID caching, 802.11r, OKC |
| WWAN | 2G: GSM850/GSM900/DCS1800/PCS1900 3G: CDMA EVDO: Bc0 WCDMA: B1/B2/B4/B5/B8 TD-SCDMA: A/F(B34/B39) 4G: B1/B2/B3/B4/B5/B7/B8/B20/B34/B38/B39/B40/B41 |
| Bluetooth | V2.1 + EDR, 3.0 + HS and V4.1 + HS, BT5.0 |
| GNSS | GPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna |
| NFC | |
| Frequency | 13.56 MHz |
| Protocol | ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc. |
| Chip | M1 card (S50, S70), CPU card, NFC tags, etc. |
| Range | 2-4 cm |
| Camera | |
| Front Camera | 5MP |
| Rear Camera | Rear 16MP Autofocus with flash |
| Barcode Scanning (Optional) | |
| 2D Scanner | Honeywell N6603 / N6703 |
| 1D Symbologies | UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5 |
| 2D Symbologies | PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX) |
| Optional Accessories | |
| Standard | Charging Cradle, Lanyard etc. |
| Developing Environment | |
| SDK | IDT RHC90 Software Development Kit |
| Operating System | Android 10/14, GMS, FOTA, Soti MobiControl, Android Enterprise Recommended, Zero-Touch, 90-day security updates, SafeUEM supported |
| Language | Java |
| Tool | Eclipse / Android Studio |
| Order Information | |
| Part Number | IDT.RH.C90 |
Adapter (EU)
USB Cable

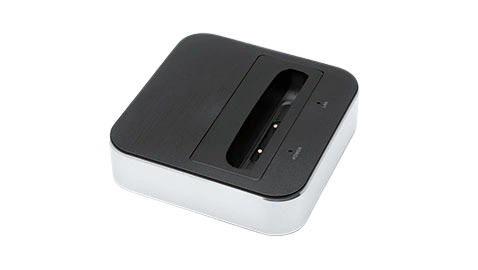

Charging Cradle (Black，optional)

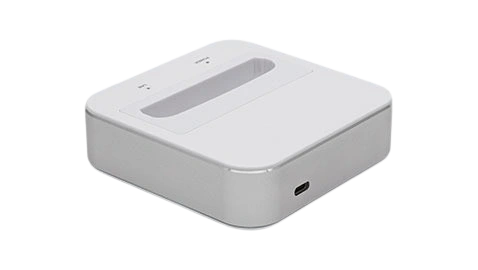

Charging Cradle (White，optional)

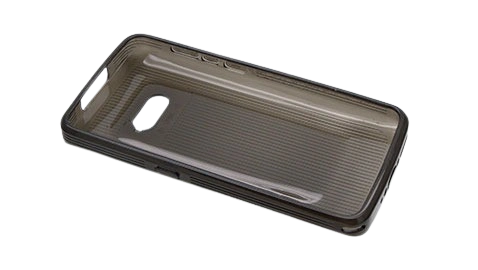

Rugged Rubber Boot (Black，optional)

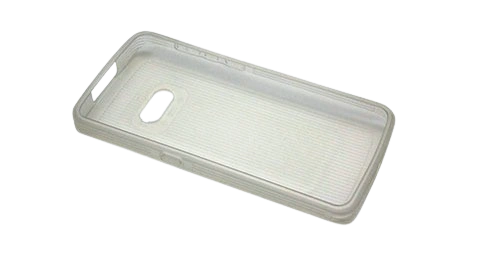

Rugged Rubber Boot (White，optional)
