IDT RHC66 RFID UHF Portable Scanner

The IDT RHC66 RFID UHF Portable Scanner is a powerful, rugged Android handheld reader designed for industries requiring high-sensitivity, long-range RFID performance. With support for Impinj Gen2X protocol, it delivers reliable reads at up to 30 meters, ensuring efficient operations in logistics, warehousing, retail, healthcare, and more. Available in three configurations: RHC66, RHC66 + RHR6, and RHC66 Built-in UHF, this device is versatile enough for multiple enterprise applications.

Why Choose IDT RHC66?

Android 11/13
Up to 30m Read Range (depending on configuration)
9600mAh Removable Battery with Fast Charging
Optional Barcode, NFC, and Camera Integration
Rugged IP65 Design & 1.8m Drop Resistant

Ready for efficient RFID data capture?

Get the IDT RHC66 from ID Tech – trusted by leading government bodies, ID Tech proudly powers national initiatives with Made-in-India, scalable technology.

Long-range RFID reading
Rugged and durable
Expert support & deployment

Datasheet

Overview
Specification
Accessories

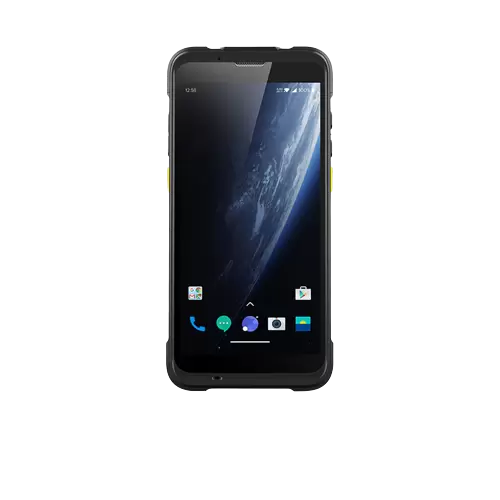

The IDT RHC66 is designed for users who need a rugged, portable device with industry-leading UHF RFID capabilities. Its Qualcomm Octa-Core 2.0GHz processor, large 5.5-inch HD display, and removable battery ensure extended use in challenging environments.
The RHC66 series offers three configurations:

IDT RHC66 (Standard) – optimized for general long-range UHF applications.
IDT RHC66 + RHR6 – includes an attachable UHF sled for enhanced performance and extended read range.
IDT RHC66 Built-in UHF – compact phone-size device with integrated UHF module for short-distance operations.

Applications

RHC66 Highlights

High-Sensitivity UHF: Reads up to 30m depending on configuration, supporting multiple tag types.
High-Speed Processing: Octa-Core 2.0GHz processor handles intensive applications without lag.
Large HD Display: 5.5-inch screen for easy operation and clear visualization.
Rugged & Durable: IP65 rated; withstands 1.8m drops; tumble tested for 1000 falls of 0.5m.
Multi-Function Scanning: Optional barcode, NFC, and 13MP camera integration.
Long-Lasting Power: Removable 9600mAh battery with QC3.0 fast charging for over 12 hours of continuous use.

Future-Ready Features

Optional Barcode & NFC: Expand scanning capabilities for versatile applications
Connectivity Options: WiFi 6, Bluetooth 5.1, 4G LTE, GNSS positioning.

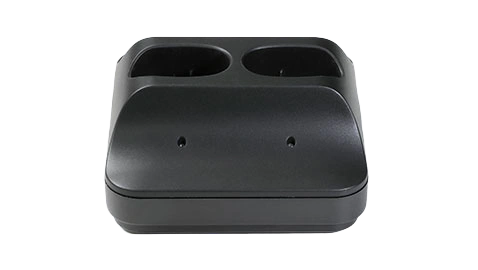

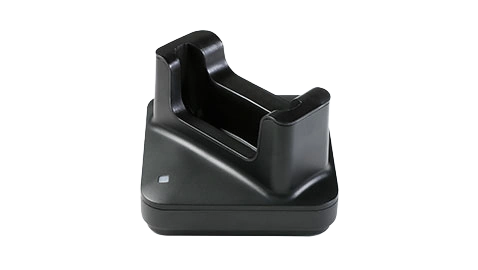

Modular Accessories: UHF sled (RHR6), pistol handle, wrist strap, rubber bumper, charging cradles.
Android 11/13: Supports Android Enterprise, Zero-Touch, FOTA, and SDK development.

Why Choose ID Tech?

ISO 9001:2015-certified production
Made in India with global-quality standards
Fast delivery and flexible MOQs
Trusted by 3,000+ global clients

Connect with a product expert →

Physical Parameters
Dimensions	160.0 x 76.0 x 26.0 mm
Weight	297 g
Interface	USB Type-C, USB 3.1, OTG, extended thimble
Display	5.5-inch high definition full display (18:9), IPS 1440 x 720
Battery	Removable main battery 5200mAh, support QC3.0 and RTC; Standby: up to 490 hours
Touch Panel	Multi-touch panel, gloves and wet hands supported
Audio	2 microphones, 1 for noise cancellation; 1 speaker; 1 receiver
Notification	Sound, LED indicator, vibrator
Keypad	1 power key, 2 scan keys, 2 volume keys
Performance
Processor	Octa-core 2.0 GHz
Expansion	Supports up to 256GB Micro SD (TF) card
RAM + ROM	3GB + 32GB / 4GB + 64GB (optional) / 6GB + 128GB (optional)
Environmental Specifications
Operating Temperature	-20°C to +50°C
Storage Temperature	-40°C to +70°C
Humidity	5% RH – 95% RH non condensing
Drop Test	1.8 m to the concrete
Protection	IP65
Communication
WLAN	802.11 a/b/g/n/ac, 2.4G / 5G dual-band
WWAN	2G, 3G & 4G
Bluetooth	Bluetooth 5.1
Vo-LTE	Support
GNSS	GPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna
UHF RFID
Frequency	865–868 MHz / 920–925 MHz / 902–928 MHz
Engine	CM-5N module based on Impinj E510
Impinj Gen2X	Supported
Protocol	EPCglobal Gen 2 (ISO18000-6C)
Antenna	Circular Polarized Antenna
Max Read Range	Up to 32m
Fastest Read Rate	1300+ tags/sec
Camera
Camera	Rear 13MP autofocus with flash
Facial Recognition	ISO19794-5 Compatible
Developing Environment
SDK	Provided
Operating System	Android 11/13
Language	Java
Tool	Eclipse / Android Studio
Order Information
Part Number	IDT.RH.C66
