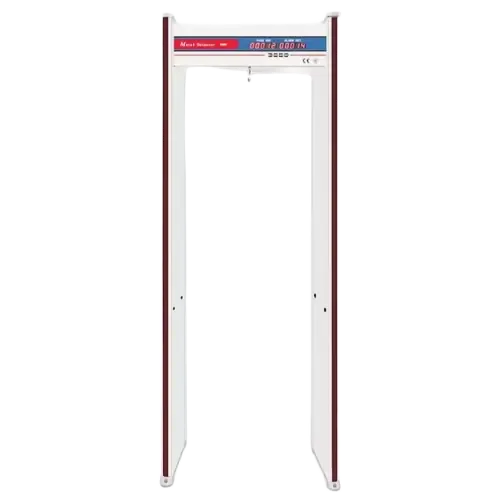

The Six Zone Door Frame Metal Detector is designed to keep your entry points secure by detecting any metallic objects hidden on a person as they walk through. Unlike single-zone models, this advanced system is divided into six pinpoint detection zones, allowing security teams to see exactly where metal is located on the body. It doesn’t just detect, it also counts the number of people entering and exiting automatically, making it ideal for managing foot traffic. With audio and visual alerts for instant response and manually adjustable sensitivity (0–255) for each zone, it’s built to adapt to your security needs. Plus, the Six Zone DFMD is completely safe for pregnant women and individuals with pacemakers, ensuring reliable protection for everyone.
Why Choose the Six Zone Door Frame Metal Detector?
Looking for an advanced walkthrough metal detector?
Protect your facility with the Six Zone Door Frame Metal Detector from ID Tech
The Six Zone Door Frame Metal Detector offers multi-zone pinpoint detection for precise localization of concealed metallic threats. Each of its six overlapping detection zones covers the full height of a person, with individual LED indicators displaying the exact zone where metal is detected. Equipped with four emitter-receiver pairs, it eliminates blind spots, ensuring reliable and comprehensive screening.
The system features independent sensitivity adjustment (0–255) for each zone, allowing operators to fine-tune performance and avoid false alarms caused by small metallic items like coins or belt buckles. The built-in passenger counter tracks both entry and exit counts, while audio-visual alarms provide immediate notification upon detection. Designed with robust, corrosion-resistant materials, the IDT-06 DFMD ensures stable operation under continuous use. It supports parallel operation, enabling multiple units to work together efficiently at high-traffic entrances. Completely safe for humans, it poses no health risks to individuals with cardiac pacemakers or pregnant women.
| Technical Specification | |
|---|---|
| Model | IDT-06 |
| Power Supply | 220V/AC |
| Power | ≥30V |
| External Dimension | 2200mm(H) x 820mm(W) x 550mm(D) |
| Passageway Dimension | 2000mm(H) x 700mm(W) x 550mm(D) |
| Work environment | -20°C ~+70°C |
| Detection | 6 Zone |
| Standard Configuration | |
| Model | One Unit |
| Left Probe | One Unit |
| Right Probe | One Unit |
| Power Line | One Unit |
| Screws | Eight Unit |
| Instruction | One Unit |
| Packing | |
| Main Case Packing | 0.755m x 0.485m x 0.255m (Carton) |
| Probe Packing | 2.27m x 0.62m x 0.19m(Carton) |
| Volume in total | 0.361 m |
| Gross Weight | 50Kg (Approximate) |
| Optional Accessories | |
| Slipping groove | Let the personal belongings which may be interfered with (such as keys, watches, cell, etc) slip through. |
| Remote Control | Control the gate within 10 meters, when paralleled the distance should be short. |
| Storage Battery | Maintain the gate working for about 4 hours after charging. |
| Examining Standard | |
| Standards | Electrical Equipment standardized by En60950 Radiation standardized by EN50081-1 Anti-inference standardized by Eb50082 Execute the standard of National Standard of Metal Detector Coin Standard: The gate can detect one coin without inference |
