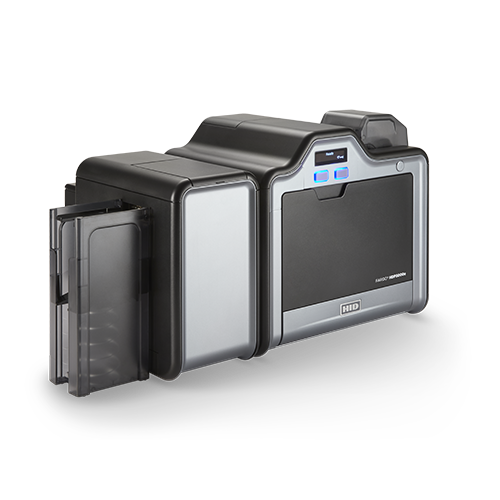

The HID FARGO® HDP5000e provides excellent image clarity with high-definition retransfer printing, guaranteeing bright, full-coverage cards. Engineered for secure, large-scale issuance, it accommodates sophisticated smart card encoding and various personalization choices. Featuring improved durability, modular expandability, and effective cost control, it’s perfect for government, corporate, and educational uses that require accuracy, security, and top-tier performance in every print.
Why Choose the Fargo HDP5000e?
Ready for high-definition ID printing?
Get the HID FARGO HDP5000e from ID Tech – trusted by leading organizations across India.
The HID FARGO HDP5000e ID Card Printer from ID Tech is built for those who won’t compromise on quality. Using advanced retransfer technology, it delivers stunning, high-definition prints that cover the entire card surface, even tricky smart cards with uneven surfaces. The FARGO HDP5000e ID card printer supports multiple encoding options, from magnetic stripe to contactless smart cards, making it a powerhouse for secure access control. With modular upgrades like the HID FARGO HDP5000e Dual Side ID Card printing module, lamination, and even Wi-Fi connectivity, it grows with your needs. Perfect for corporate, government, and educational ID programs, it’s the card printer that delivers brilliance, security, and reliability every time.
| Print Method | HDP® Dye-Sublimation / Resin Thermal Transfer | |||
| Resolution | 300 dpi (11.8 dots/mm) | |||
| Colors | Up to 16.7 million / 256 shades per pixel | |||
| Print Ribbon Options | • Full-color, YMC* 750 prints • Full-color with resin black, YMCK*, 500 prints • Full-color with two resin black panels, YMCKK*, 500 prints • Full-color with resin black and fluorescing panels, YMCFK*, 500 prints • Resin black, K*, 3000 prints |
|||
| HDP Film Options | • Clear (1,500 prints) • Standard Holographic (500 prints) • Contact HID regarding Custom Holographic Film options |
|||
| Overlaminate Options | • Thermal Transfer Overlaminate, .25 mil thick, 500 prints • PolyGuard® Overlaminate, 1.0 mil and .6 mil thick, 250 prints (PolyGuard available in a CR-80 patch size) All overlaminates available in clear, standard holographic design or custom holographic design |
|||
| Print Speed (Batch Mode) | • Up to 27 seconds per card / 133 cards per hour (YMCK with transfer)* • Up to 33 seconds per card / 109 cards per hour (YMCKK with transfer)* • Up to 33 seconds per card / 109 cards per hour (YMCK with transfer and dual-sided, simultaneous lamination)* • Up to 44 seconds per card / 82 cards per hour (YMCKK with transfer and dual-sided, simultaneous lamination)* |
|||
| Accepted Standard Card Sizes | CR-80 (3.375”L x 2.125”W / 85.6 mm L x 54 mm W) | |||
| Print Area | Over-the-edge on CR-80 cards | |||
| Accepted Card Thickness | • Print only: .030” (30 mil) to .050” (50 mil) / .762 mm to 1.27 mm • Print/Lamination: .030” (30 mil) to .050” (50 mil) / .762 mm to 1.27 mm |
|||
| Accepted Card Types | ABS, Laminated PVC, PET, PETG, proximity, smart and mag stripe cards Note: ABS and PVC cards are not recommended for use in the HDP5000e Lamination Module. |
|||
| Input Card Cartridge Capacity | 100 cards (.030” / .762 mm) – Optional dual input hopper or 200-card input hopper available for a total input capacity of 200 cards | |||
| Output Hopper Card Capacity | 200 cards (.030” / .762 mm) | |||
| Card Cleaning | Replaceable cleaning roller (included with each print ribbon) | |||
| Display | Graphical OLED | |||
| Software Drivers | Windows® 10 / 11 / Server 2016 / Server 2019 / Server 2022 | |||
| Encoding Options | • ISO Magnetic Stripe Encoding, dual high- and low-coercivity, Tracks 1, 2 and 3 • Contactless Smart Card Encoder (HID iCLASS® and MIFARE / DESFire) • ISO 7816 Contact Smart Card Encoder • Prox Card Reader (HID read-only) |
|||
| Supported Access Control Credential Programming | iCLASS® Standard / SE / SR / Seos, MIFARE Classic®, MIFARE / DESFire® EV1 / EV2, HID Prox (Also see the Card Encoding Modules for FARGO® Card Printers Datasheet for additional information) | |||
| Interface | USB 2.0 (high speed) and Ethernet with internal print server | |||
| Operating Temperature | 65° to 90° F / 18° to 32° C | |||
| Humidity | 20 – 80% non-condensing | |||
| Dimensions | • HDP5000e: 12”H x 16.5”W x 11”D / 30.5 cm H x 41.9 cm W x 27.9 cm D • HDP5000e + Dual-Sided Module: 12”H x 22”W x 11”D / 30.5 cm H x 55.9 cm W x 27.9 cm D • HDP5000e + Single-Sided Lam Module: 12.75”H x 25”W x 11”D / 32.4 cm H x 63.5 cm W x 27.9 cm D • HDP5000e + Dual-Sided Module + Dual-Sided Lam Module: 12.75”H x 30”W x 11”D / 32.4 cm H x 76.2 cm W x 27.9 cm D • Lam Module: 12.75”H x 12.25”W x 11”D / 32.4 cm H x 31.1 cm W x 27.9 cm D |
|||
| Weight | • HDP5000e: 18.7 lbs. / 8.5 kg • HDP5000e + Dual-Sided Module: 28.6 lbs. / 13 kg • HDP5000e + Single-Sided Lam Module: 31.7 lbs. / 14.4 kg • HDP5000e + Dual-Sided Module + Dual-Sided Lam Module: 39.6 lbs. / 18 kg |
|||
| Certifications | UL, CE, FCC, IC, IFTEL, KC, VCCI, MIC, NCC, WPC, BIS, ENACOM | |||
| Supply Voltage | 100-240 VAC, 1.6A | |||
| Supply Frequency | 50 Hz / 60 Hz | |||
| Warranty | • Printer – Four years including one year of free printer loaner support with option to purchase a second year of printer loaner support (U.S. only) • Printhead – Lifetime, unlimited card passes |
|||
| FARGO Secure Materials | FARGO Card Printer/Encoders require highly specialized media to function properly. To maximize printed card quality and durability, printhead life and printer/encoder reliability, use only HID Secure Materials. HID warranties are void, where not prohibited by law, when non-HID Secure Materials are used. | |||
| Options | • Dual input card hopper module • Card lamination module – single-sided or dual-sided (simultaneous) • Magnetic stripe encoding • 200-card input hopper • Smart card encoding (contact/contactless) • Dual-sided printing • Printer cleaning kit • Secure proprietary consumables system • Custom secure holographic HDP Film and overlaminate |
|||
| Software | FARGO Workbench™ diagnostic utility with Color Assist spot-color matching included with driver | |||
